Qorvo高頻放大器（> 6 GHZ）
發布時間：2020-09-17 15:07:48 瀏覽：1581
Qorvo高頻放大器是測量儀器和檢測設備的重要組成部分，Qorvo高頻放大器電路一般是設備的輸入級，檢測到的微弱信號應先由高頻放大電路放大，然后再進行處理，因此Qorvo高頻放大器的性能指標對整個儀器的性能起著決定性的作用。

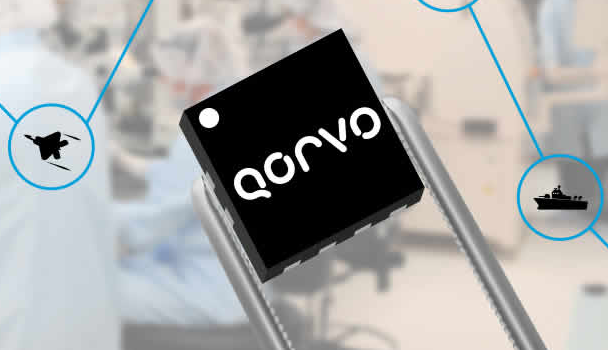

Qorvo高頻放大器的放大器產品系列超過6 GHz，包括提供核心和封裝形式的GaAs和GaN器件。
主要特征
行業領先的GaAs和GaN技術功率放大器
特定于應用的產品核心
不同的功率水平和高PAE和增益性能
小尺寸
典型應用
軍用和商業雷達
電子戰
軍事和商業衛星通信，包括VSAT
點對點無線電
深圳市立維創展科技是QORVO的經銷商，主要提供QORVO功率放大器，IC和裸芯片，立維創展擁有穩定的供貨渠道，價格優勢，并大量備有現貨庫存，歡迎咨詢。
詳情了解Qorvo高頻放大器請點擊：http://www.yzgnjsb.cn/brand/4.html
或聯系我們的銷售代表：0755-83050846 QQ: 3312069749
*部分產品需申請出口許可
Part # | Frequency Min
GHz | Frequency Max
GHz | Pout
W | Gain
dB | PAE
% | OIP3
dBm | Voltage
V | Current
mA | Package Type |
CMD158 | 6 | 16 | 0.1 | 20 |
| 26 | 3 to 6 | 95 | Die |
CMD158C4 | 6 | 16 | 0.1 | 21 |
| 26 | 3 to 6 | 95 | Plastic QFN |
CMD158P3 | 6 | 14 | 0.09 | 19.5 |
| 26.5 | 3 to 6 | 95 | Plastic QFN |
CMD166 | 20 | 40 | 0.05 | 9 |
| 27 | 2 to 4 | 76 | Die |
CMD199 | 26 | 35 | 0.09 | 15 |
| 24.5 | 5 | 72 | Die |
CMD243 | 26 | 35 | 0.13 | 15.5 |
| 26 | 3 to 5 | 90 | Die |
CMD291 | 16 | 24 | 0.35 | 23 |
| 33 | 3 to 5 | 250 | Die |
CMD291P4 | 16 | 24 | 0.35 | 23 |
| 31.5 | 5 | 250 | Plastic QFN |
CMD293 | 20 | 45 | 0.4 | 20 |
| 31.5 | 5 | 480 | Die |
CMD305 | 6 | 16 | 0.1 | 18.5 |
| 34 | 3 to 5 | 100 | Die |
CMD305C4 | 6 | 16 | 0.1 | 18.5 |
| 33 | 3 to 5.25 | 100 | Ceramic QFN |
CMD305P3 | 6 | 14 | 0.08 | 18 |
| 31.5 | 3 to 5.25 | 100 | Plastic QFN |
TGA2218 | 13.4 | 16.5 | 12 | > 26 | > 28 |
| 28 | 225 | Die |
TGA2218-SM | 13.4 | 16.5 | 12 | 28 | 29 |
| 28 | 225 | SMT |
TGA2219 | 13.4 | 16.5 | 25 | > 33 | > 28 |
| 28 | 450 | Die |
TGA2219-CP | 13.4 | 16.5 | 25 | > 30 | > 31 |
| 28 | 450 | Cu Base |
TGA2238 | 8 | 11 | 60 | 31 | 42 |
| 28 | 650 | Die |
TGA2238-CP | 8 | 11 | 50 | > 28 | 34 |
| 28 | 650 | Cu Base |
TGA2239 | 13 | 15.5 | 35 | 29.5 | > 32 |
| 22 | 900 | Die |
TGA2239-CP | 13.4 | 15.5 | 50 | > 30 | > 31 |
| 28 | 900 | Flange |
TGA2312-FL | 9 | 10 | 60 | 13 | 38 |
| 24 | 2,400 | Flange |
TGA2514 | 13 | 18 | 6.5 | 24 |
|
| 8 | 2,600 | Die |
TGA2514N-FL | 13 | 16 | 6 | 24 |
|
| 8 | 2,600 | Flange |
TGA2521-SM | 17 | 24 | 0.25 | 20 |
|
| 5 | 320 | QFN |
TGA2524-SM | 12 | 16 | 0.3 | 23 |
|
| 5 | 320 | QFN |
TGA2527-SM | 12.5 | 15.5 | 1 | 25 |
|
| 6 | 650 | QFN |
TGA2533 | 12.7 | 15.4 | 3 | 28 |
|
| 6 | 1,300 | Die |
TGA2533-SM | 12.5 | 15.5 | 2.5 | 27 |
|
| 6 | 1,300 | QFN |
TGA2535-SM | 10 | 12 | 2.5 | 25 | 30 |
| 6 | 1,300 | QFN |
TGA2565-SM | 11 | 17 | 0.5 | 27 |
|
| 6 | 210 | QFN |
TGA2575 | 32 | 38 | 3 | 19 | 22 |
| 6 | 2,100 | Die |
TGA2575-TS | 32 | 38 | > 3 | 19 | 22 |
| 6 | 2,100 | Die on CuMoCu |
TGA2594 | 27 | 31 | 5 | 30 | 28 |
| 20 | 140 | Die |
TGA2594-HM | 27 | 31 | 4 | 25 | 25 |
| 20 | 140 | QFN |
TGA2595 | 27.5 | 31 | 9 | 30 | 22 |
| 20 | 280 to 560 | Die |
TGA2595-CP | 27.5 | 31 | 8 | 21 | > 22 |
| 20 | 560 | Flange |
TGA2621-SM | 16 | 18.5 | 1 | > 24.5 | > 23 |
| 6 | 500 | QFN |
TGA2622 | 9 | 10 | 40 | 32 | > 46 |
| 28 | 290 | Die |
TGA2622-CP | 9 | 10 | 35 | 30 | > 43 |
| 28 | 290 | Cu Base |
TGA2622-SM | 9 | 10 | 35 | > 30 | > 42 |
| 28 | 290 | QFN |
TGA2623 | 10 | 11 | 35 | 35 | > 47 |
| 28 | 290 | Die |
TGA2623-CP | 10 | 11 | 32 | 30 | > 41 |
| 28 | 290 | Flange |
TGA2624 | 9 | 10 | 18 | > 35 | > 40 |
| 28 | 365 | Die |
TGA2624-CP | 9 | 10 | 16 | 27 | > 37 |
| 28 | 365 | Cu Base |
TGA2624-SM | 9 | 10 | 20 | > 34 | > 40 |
| 28 | 365 | QFN |
TGA2700 | 7 | 13 | 1 | 25 |
|
| 9 | 300 | Die |
TGA2701 | 7 | 8.5 | 5 | 21 | > 40 |
| 5 to 7 | 1,050 | Die |
TGA2704 | 9 | 10.5 | 6 | 20 | > 40 |
| 7 to 9 | 1,050 | Die |
TGA2704-SM | 9 | 11 | 8 | 21 | 40 |
| 9 | 1,050 | QFN |
TGA2752-SM | 7.1 | 8.5 | 10 | 28 |
|
| 6, 28 | 1,000, 190 | QFN |
TGA2760-SM | 9.5 | 12 | 16 | 33 |
|
| 6, 28 | 1,000, 260 | SMT |
TGA3042 | 7 | 10.5 |
| 32.5 | 38.5 |
| 20 | 200 | die |
TGA3042-SM | 7 | 10.5 | 36.5 | 32.5 | 38.5 |
| 20 | 200 |
|
TGA4030-SM | 17 | 37 | 0.2 | 20 |
|
| 5 | 140 | QFN |
TGA4036 | 19 | 38 | 0.2 | 20 |
|
| 5 | 160 | Die |
TGA4040 | 17 | 43 | 0.2 | 25 |
|
| 5 | 140 | Die |
TGA4046 | 41 | 46 | 2 | 16 |
|
| 6 | 2,000 | Die |
TGA4509 | 27 | 31 |
| 22 |
|
| 6 | 420 |
|
TGA4516 | 30 | 40 | 2 | 18 |
|
| 6 | 1,050 | Die |
TGA4516-TS | 30 | 40 | 2 | 18 |
|
| 6 | 1,050 | Die |
TGA4517 | 31 | 37 | 3 | 15 |
|
| 6 | 2,000 | Die |
TGA4521 | 32 | 45 | 0.25 | 15 |
|
| 6 | 200 | Die |
TGA4522 | 33 | 47 | 0.5 | 14 |
|
| 6 | 400 | Die |
TGA4532 | 17.5 | 20 | 1.5 | 23 |
|
| 6 | 900 | Die |
TGA4532-SM | 17.7 | 19.7 | 1.5 | 23 |
|
| 6 | 900 | QFN |
TGA4533-SM | 21.2 | 23.6 | 1.5 | 22 |
|
| 6 | 880 | QFN |
TGA4534-SM | 17.7 | 19.7 | 2.5 | 21 |
|
| 6 | 1,430 | QFN |
TGA4535-SM | 21.2 | 23.6 | 2.5 | 22 |
|
| 6 | 1,430 | QFN |
TGA4536-SM | 24.2 | 26.5 | 2.5 | 18 | 20 |
| 6 | 1,430 | QFN |
TGA4543 | 40.5 | 43.5 | 1 | 23 |
|
| 6 | 900 | Die |
TGA4544-SM | 26 | 31 | 1 | 23 |
| 41 | 6 | 1,100 | QFN |
TGM2635-CP | 8 | 11 | 100 | > 26 | 35 |
| 28 | 1,300 | Flange |
