?60W寬輸出電壓電源模塊XP power
發布時間：2023-12-22 16:46:27 瀏覽：715

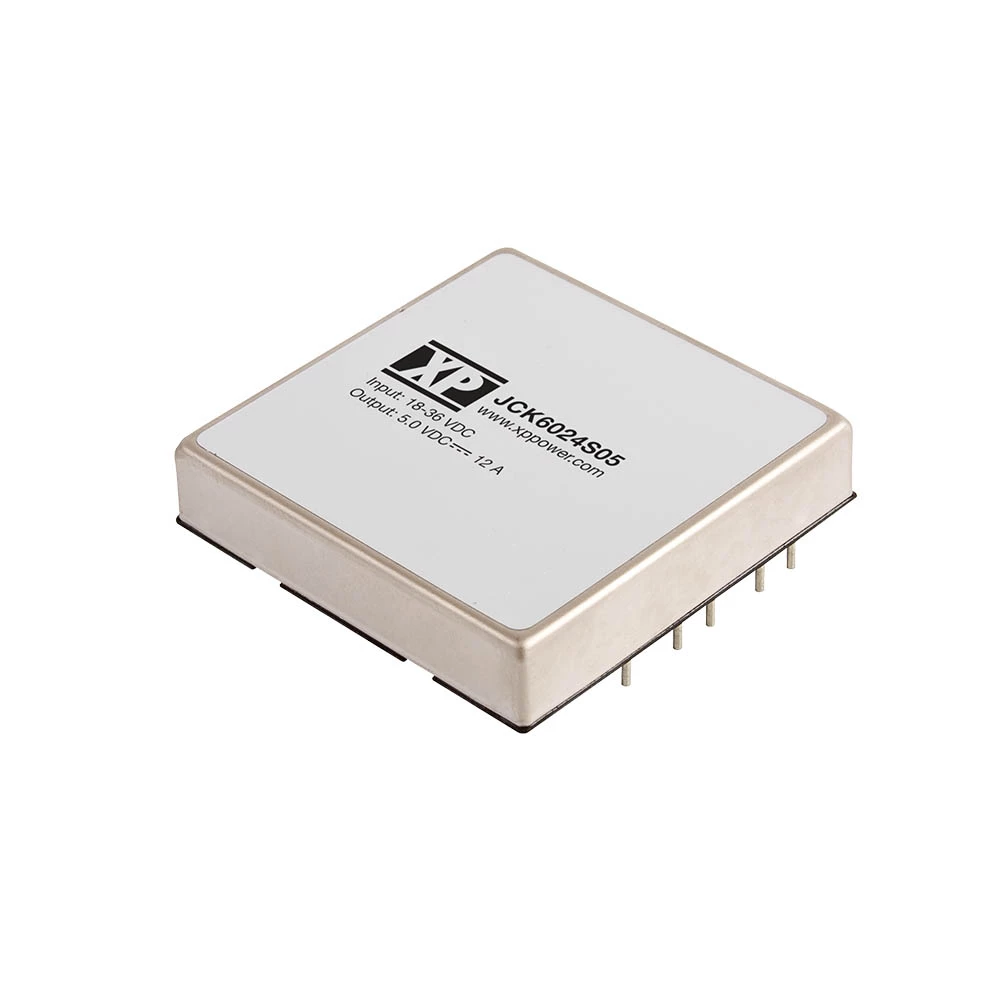

XP power的60W寬輸出電壓開關電源設置在2:1輸入、PCB組裝金屬機殼中。
60W寬輸出電壓開關電源具備18至36VDC或36至75VDC的2:1輸入電壓范圍，具備3.3、5、12、15VDC可調式+/-10%的調整單輸出，帶微調功率電阻。
60W寬輸出電壓開關電源在輸入輸出之間有著1.6kVDC隔離。遠程控制開/關屬于典型的，過電流保護、過電壓保護和過溫保護也屬于典型的。
60W寬輸出電壓開關電源溫度范圍為-40°C至+85°C，降額超出+40°C?？蛇x擇散熱器（-HK）可在安裝過程中延長全功率操作溫度。
特征
60W直流電源模塊9-36VDC
輸入電壓：18to36VDC，9to36VDC，36to75VDC，18to75VDC
輸出電壓：3.3V，5.1V，5V，12V，15V，48V
輸出電流：5A，12A
操作溫度：-40to+70°C
MODEL NAME | POWER | INPUT VOLTAGE | OUTPUT VOLTAGE | OUTPUT CURRENT |
JCK6024S3V3 | 60W | 18 to 36 VDC | 3.3V | 14A |
DTE6024S5V1 | 60W | 9 to 36 VDC | 5.1V | 12A |
JCK6024S05 | 60W | 18 to 36 VDC | 5V | 12A |
DTE6024S12 | 60W | 9 to 36 VDC | 12V | 5A |
JCK6024S12 | 60W | 18 to 36 VDC | 12V | 5A |
DTE6024S24 | 60W | 9 to 36 VDC | 24V | 2.5A |
JCK6024S15 | 60W | 18 to 36 VDC | 15V | 4A |
DTE6024S48 | 60W | 9 to 36 VDC | 48V | 1.25A |
JCK6048S3V3 | 60W | 36 to 75 VDC | 3.3V | 14A |
DTE6048S5V1 | 60W | 18 to 75 VDC | 5.1V | 12A |
JCK6048S05 | 60W | 36 to 75 VDC | 5V | 12A |
DTE6048S12 | 60W | 18 to 75 VDC | 12V | 5A |
JCK6048S12 | 60W | 36 to 75 VDC | 12V | 5A |
DTE6048S24 | 60W | 18 to 75 VDC | 24V | 2.5A |
JCK6048S15 | 60W | 36 to 75 VDC | 15V | 4A |
DTE6048S48 | 60W | 18 to 75 VDC | 48V | 1.25A |
JTL6024S05 | 60W | 9 to 36 VDC | 5V | 12A |
JTL6024S12 | 60W | 9 to 36 VDC | 12V | 5A |
JTL6024S15 | 60W | 9 to 36 VDC | 15V | 4A |
JTL6024D12 | 60W | 9 to 36 VDC | 12V, -12V | 2.5A, -2.5A |
JTL6024D15 | 60W | 9 to 36 VDC | 15V, -15V | 2A, -2A |
JTL6048S05 | 60W | 18 to 75 VDC | 5V | 12A |
JTL6048S12 | 60W | 18 to 75 VDC | 12V | 5A |
JTL6048S15 | 60W | 18 to 75 VDC | 15V | 4A |
JTL6048D12 | 60W | 18 to 75 VDC | 12V, -12V | 2.5A, -2.5A |
JTL6048D15 | 60W | 18 to 75 VDC | 15V, -15V | 2A, -2A |
