API SAW Oscillators可用芯片衰減器
發布時間：2022-10-14 16:33:54 瀏覽：696
API SAW Oscillators可用芯片衰減器設計適用于在其它工作頻率、溫度與功率水平上平均減少信號功率。API SAW Oscillators可用芯片衰減器適合于功率放大電路、接收器、上/下轉換器、相位匹配陣列和交換網絡。API SAW Oscillators可用芯片衰減器的標準配備為鍍錫無鉛焊錫端子，或鍍錫鉛焊錫和金做為其他表層處理選擇。其他dB值，工作頻段和實現選擇可以根據需要提供。
API SAW Oscillators可用芯片衰減器的設計的目的是均勻的減少射頻信號的功率，同時只形成極小的反射，即便在最大功率情況下。
特征
厚膜設計
高功率
無線天線應用
API Tech為全世界高可靠性行業提供SAW振蕩器。API Tech選用超低相噪聲表濾波器，其相位噪聲性能極低。API的SAW產品可提供頻率范圍為100MHz至4000MHz，特別適合航空航天應用領域。API Tech提供穩定頻率、電壓控制和鎖相振蕩器。
深圳市立維創展科技有限公司，專注API SAW Oscillators超低相噪SAW晶振產品代理銷售，最快2-4周交付。
詳情了解API SAW Oscillators請點擊：http://www.yzgnjsb.cn/brand/60.html

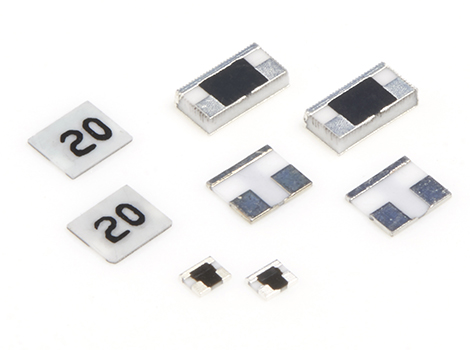

Available Chip Attenuators
Model | Power (Watts) | Frequency (GHz) | Ceramic Substrate | Resistor Film | Wrap Options | Finish Option | Width (Inches) | Length (Inches) | Height (Inches) |
1KNA250 | 250 | 1 | AlN | Thin & Thick | G, Tabbed | N, T, H | 0.375 | 0.375 | 0.040 |
2KNA100 | 100 | 2.3 | AlN | Thin & Thick | G, Tabbed | N, T, H | 0.350 | 0.225 | 0.040 |
2KNA150 | 150 | 1.9 | AlN | Thin & Thick | G, Tabbed | N, T, H | 0.375 | 0.250 | 0.040 |
2KNA250 | 250 | 2.3 | AlN | Thin & Thick | G, Tabbed | N, T, H | 0.500 | 0.500 | 0.040 |
3KNA100 | 100 | 3 | AlN | Thin | G, Tabbed | N, T, H | 0.375 | 0.250 | 0.040 |
40PCA3060 | 1.0 | 40 | Alumina | Thin |
| T, H, G | 0.035 | 0.065 | 0.010 |
KPA10 | 10 | 4 | BeO | Thin | G | N, T, H | 0.100 | 0.200 | 0.040 |
KPA100 | 100 | 0.5 | BeO | Thin | G | N, T, H | 0.500 | 0.500 | 0.40 |
KPA1020S | 20 | 8 | BeO | Thin |
| N,T,H,G | 0.100 | 0.200 | 0.040 |
KPA20 | 20 | 4 | BeO | Thin | G | N, T, H | 0.250 | 0.250 | 0.040 |
KPA50 | 50 | 1 | BeO | Thin | G | N, T, H | 0.375 | 0.375 | 0.040 |
PCA | 1.5 | 12.4 | Alumina | Thin |
| N, T, H, G | 0.125 | 0.150 | 0.010 |
PCA3060 | 1.0 | 30 | Alumina | Thin |
| T, H, G | 0.035 | 0.065 | 0.010 |
PCAA | 0.75 | 18 | Alumina | Thin |
| N, T, H, G | 0.060 | 0.075 | 0.010 |
PCAAF | 0.75 | 8 | Alumina | Thin | F | N, T, H, G | 0.060 | 0.075 | 0.010 |
PCAAL | 0.75 | 18 | Alumina | Thin | Tabbed | G, T, H | 0.060 | 0.075 | 0.040 |
PCAAW | 0.75 | 18 | Alumina | Thin | W | N, T, H, G | 0.060 | 0.075 | 0.010 |
PCAF | 1.5 | 4 | Alumina | Thin | F | N, T, H, G | 0.125 | 0.150 | 0.010 |
PCAL | 1.5 | 12.4 | Alumina | Thin | Tabbed | G, T, H | 0.125 | 0.150 | 0.040 |
PCAW | 1.5 | 12.4 | Alumina | Thin | W | N, T, H, G | 0.125 | 0.150 | 0.010 |
TPA100 | 100 | 0.4 | BeO | Thin | G | N, T, H | 0.500 | 0.500 | 0.040 |
