KRYTAR同軸適配器
發布時間：2022-06-01 17:10:04 瀏覽：814

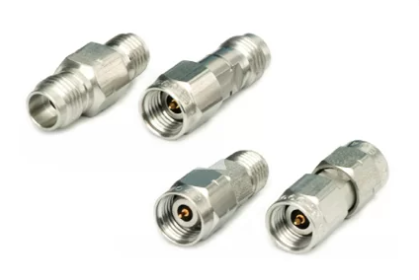

KRYTAR設計和制作極為穩固的射頻/微波同軸適配器，可用作商業服務和國防軍事市場的各種無線通信應用、檢測設備和天線設備。
KRYTAR同軸適配器可提供串聯和串聯之間的連接器配備，包括母對公、公對母、公對公和母對母。連接器類型包括SMA、2.92mm、2.4mm和2.92mm至2.4mm。
KRYTAR同軸適配器通常有現貨供應至30天ARO。
KRYTAR為滿足或超過關鍵功能和/或包裝規格的訂制設計提供完整性的工程服務。
特征
DC至 67 GHz
SMA / 3.5 mm / 2.4 mm / 2.92 mm
深圳市立維創展科技授權代理RADITEK產品，部分型號備有現貨。產品原裝進口，質量保證，歡迎咨詢。
詳情了解RADITEK請點擊：http://www.yzgnjsb.cn/brand/13.html
Model Number | Freq. Min (DC) | Freq. Max(GHz) | Adapter Type | Type Connector | Connector Configuration | VSWR (Max) |
4030 | DC | 67 | In Series | 1.85mm | Female to Male | 1.15, 18.0 to 40.0 GHz1.18, 40.0 to 50.0 GHz1.25, 50.0 to 67.0 GHz |
4031 | DC | 67 | In Series | 1.85mm | Male to Male | 1.15, 18.0 to 40.0 GHz1.18, 40.0 to 50.0 GHz1.25, 50.0 to 67.0 GHz |
4032 | DC | 67 | In Series | 1.85mm | Female to Female | 1.15, 18.0 to 40.0 GHz1.18, 40.0 to 50.0 GHz1.25, 50.0 to 67.0 GHz |
3030 | DC | 50 | In Series | 2.4mm | Female to Male | 1.10, DC to 27 GHz1.15, 27 to 40 GHz1.20, 40 to 50 GHz |
3031 | DC | 50 | In Series | 2.4mm | Male to Male | 1.10, DC to 27 GHz1.15, 27 to 40 GHz1.20, 40 to 50 GHz |
3032 | DC | 50 | In Series | 2.4mm | Female to Female | 1.10, DC to 27 GHz1.15, 27 to 40 GHz1.20, 40 to 50 GHz |
2030 | DC | 40 | In Series | 2.92mm | Female to Male | 1.10, DC to 27 GHz1.15, 27.0 to 40 GHz |
2031 | DC | 40 | In Series | 2.92mm | Male to Male | 1.10, DC to 27 GHz1.15, 27.0 to 40 GHz |
2032 | DC | 40 | In Series | 2.92mm | Female to Female | 1.10, DC to 27 GHz1.15, 27.0 to 40 GHz |
5010 | DC | 40 | Between Series | 2.92mm to 2.4mm | Female to Female | 1.10, DC to 18 GHz1.15, 18 to 40 GHz |
5020 | DC | 40 | Between Series | 2.92mm to 2.4mm | Female to Male | 1.10, DC to 18 GHz1.15, 18 to 40 GHz |
5030 | DC | 40 | Between Series | 2.92mm to 2.4mm | Male to Female | 1.10, DC to 18 GHz1.15, 18 to 40 GHz |
5040 | DC | 40 | Between Series | 2.92mm to 2.4mm | Male to Male | 1.10, DC to 18 GHz1.15, 18 to 40 GHz |
1030 | DC | 27 | In Series | SMA | Female to Male | 1.10, DC to 18 GHz1.15, 18 to 27 GH |
1031 | DC | 27 | In Series | SMA | Male to Male | 1.10, DC to 18 GHz1.15, 18 to 27 GHz |
1032 | DC | 27 | In Series | SMA | Female to Female | 1.10, DC to 18 GHz1.15, 18 to 27 GHz |
