CINCON電源模塊中鐵路解決方案DC-DC轉換器

發布時間：2020-10-15 17:01:39     瀏覽：6118

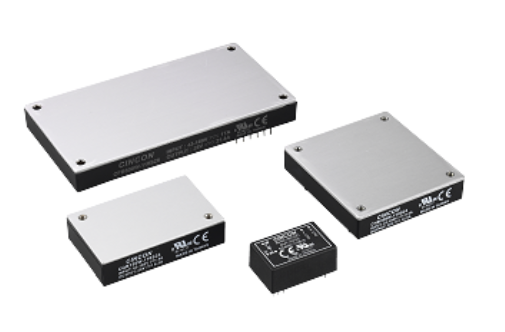

CINCON公司提供范圍廣泛的EN50155兼容的8W-600W的DC-DC變換器。CINCON變換器是專門為普通鐵路應用而設計的，標稱電壓為24V、36V、48V、72V、96V、110 V，還適用于分布式電源結構、電信、電池操作設備和工業應用。

此外，CINCON還提供更多由EN50155設計的產品。

CINCON電源模塊是一家向通信、計算機、工業、醫療、消費和照明市場提供開關電源轉換產品的全球供應商。設計和制造行業標準、DC-DC轉換器、交流-直流電源和符合RoHS要求的LED電源。

目前，CINCON電源模塊的產品包括3000多個標準產品，包括1W到750 W的單輸出和多輸出DC-DC變換器，5W到150 W單輸出和多輸出交流適配器，5W到700 W開放式交直流電源和LED電源。15W至150 W。

深圳市立維創展科技是CINCON電源模塊的經銷商，提供CINCON電源模塊的DC-DC轉換器、AC-DC電源、LED電源等，產品原裝進口，質量保障，極具價格優勢，歡迎咨詢。

詳情了解CINCON電源請點擊：http://www.yzgnjsb.cn


2:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


CQB100-110S

100W

66~160V

3.3V, 5V, 12V, 24V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)


CHB100-110S

100W

66~160V

12V, 15V, 24V, 48V

3KVac Isolation
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)


CHB150-110S

150W

66~160V

5V, 12V, 24V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

4:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


EC3AW

3W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

500/1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC3SAW

3W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVDC Isolation
Input UVP

0.86x0.36x0.44(SIP8)


EC4AW

6W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5K/3KVdc Isolation

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC4SAW

6W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVDC Isolation

0.86x0.36x0.44(SIP8)


EC6AW

8W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN50155 Compliant

1.25x0.80x0.40(DIP24)
1.25×0.80x0.45(SMD24)


EC6AW-110

10W

43~160V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

1.25x0.80x0.50(DIP24)

NEW

EC5SAW

10W

18~75V, 9~36V

12V, 15V, 3.3V, 5V, ±12V, ±15V, ±5V

3KVDC Isolation

0.87x0.37x0.47(SIP8)


EC2SBW

10W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)


EC8AW

15W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
EN55022 Class A

1.25x0.80x0.40(DIP24)


EC3SBW

15W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)


EC5BW

15W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN55022 Class A

2.00x1.00x0.40(DIP)


EC7BW

20W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

1.5KVdc Isolation
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)


EC7BW-110

20W

43~160V

5V, 12V, 15V, ±12V, ±15V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)


EC1SC

20W

9~36V, 18~72V

3.3V, 5V, 12V, 15V, ±5V, ±12V, ±15V

EN55022 Class A

2.00×1.60×0.45(DIP)


EC4SBW

20W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)


EC5SBW

30W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

1.00x1.00x0.40(DIP)


EC9BW

30W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation

2.00x1.00x0.40(DIP)


ECLB40W-110

40W

43~160V

3.3V, 5V, 12V, 15V, ±12V, ±15V, ±24V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.05x1.20x0.40(DIP)


ECLB40W

40W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)


CQE50W

50W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 48V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)


CHB50W

50W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)


CQB60W-110S

60W

43~160V

5V, 12V, 15V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)


ECLB60W

60W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, ±12V, ±15V

1.5KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)

NEW

ECLB75W

75W

18~75V, 9~36V

5V, 12V, 15V, ±12V, ±15V, ±24V

2.25KVdc Isolation
With Mounting Inserts

2.05x1.20x0.40(DIP)


CQB75W

75W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)


CHB75W

75W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

NEW

CQB100W-110S

100W

43~160V

5V, 12V, 15, 24V, 28V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

NEW

CQB100W-110SXX-CMFC(D)

100W

43-160V

5V, 12V, 15V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)


CQB100W

100W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V

1.5KVDC Isolation
UL60950-1

2.28×1.45x0.50
(Quarter Brick)


CHB100W

100W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)


CQB150W-110S

150W

43~160V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)


CQB150W-110SXX-CMFC(D)

150W

43~160V

12V, 15V, 24V, 28V, 3.3V, 48V, 5V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)


CQB150W

150W

9~36V,18~75V

5V, 12V, 24V, 28V, 48V

2250Vdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)


CHB150W

150W

9~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.52
(Half Brick)

NEW

CHB200W-110S

200W

43~160V

5V, 12V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

NEW

CHB200W-110SXX-CMFC(D)

200W

43-160V

5V, 12V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)


CHB200W

200W

10~36V, 18~75V

3.3V, 5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.52
(Half Brick)


CHB300W-110S

300W

43~160V

3.3V, 5V, 12V, 24V, 28V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

NEW

CHB300W-110SXX-CMFC(D)

300W

43-160V

3.3V, 5V, 12V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

6.50x3.00x1.52
(CMFC)
6.50x3.09x1.57
(CMFD)


CHB300W

300W

9~36V, 18~75V

5V, 12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)


CFB400W

400W

9~36V, 18~75V

5V, 12V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

4.60×2.40x0.50
(Full Brick)

NEW

CFB600W-110S

600W

43-160V

12V, 24V, 28V, 48V

2250Vdc Isolation
UL60950-1
EN45545-2
EN50155 Compliant

4.60×2.40x0.50
(Full Brick)

NEW

CFB600W-110SXX CMFD

600W

43-160V

12V, 24V, 28V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

9.45x4.33x1.65

8:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

CQB50W8

50W

9~75V

12V, 15V, 24V, 28V, 48V

3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

NEW

CQB75W8

75W

9~75V

12V, 15V, 24V, 28V, 48V

3KVac Isolation
UL62368 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)


CHB150W8

150W

9~75V

12V, 15V, 24V, 28V, 48V

1.5KVDC Isolation
UL60950-1

2.28×2.40x0.50
(Half Brick)

12:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


CQB50W12

50W

14~160V

5V, 12V, 24V, 48V

3KVdc Isolation
UL60950-1 & CB
EN45545-2
EN50155 Compliant

2.28×1.45x0.50
(Quarter Brick)

NEW

CQB50W12-72SXX-CMFC(D)

30-50W

14 -160V

5V, 12V, 24V, 48V

Screw Terminal
Build in filter
Baseplate Cooled
EN45545-2
EN50155 Compliant

4.60x2.40x1.26
(CMFC)
4.60x2.49x1.35
(CMFD)

NEW

CHB150W12

150W

14~160V

12V, 15V, 24V, 48V, 5V

3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

NEW

CHB200W12

200W

14~160V

12V, 15V, 24V, 48V

3KVac Isolation
UL62368-1 & CB
EN45545-2
EN50155 Compliant

2.28×2.40x0.50
(Half Brick)

18:1 Input Range


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)

NEW

EC7BW18

20W

8.5~160V

12V, 15V, 5V, ±12V, ±15V, ±24V

3KVac Isolation
UL62368-1
EN45545-2
EN50155 Compliant

2.00x1.00x0.40(DIP)

High Isolation 6KV


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


EC4AW-H6

5-6W

9-36V, 18-72V

5V, 12V, +/-12V, +/-15V

6KVdc Isolation
EN55022 Class A
5uA Leakage Current

1.25x0.80x0.40
(DIP24)

EMI Filter - PCB Mount


Model

Power

Input Voltage

Output Voltage

Features

Dimensions (Inch)


FM10/20

10-20A

75V


Input 75V Maximum

2.00x1.00x0.46
2.00x1.60x0.50

NEW

FM30R

30A

80V


Input 80V Maximum

2.28x1.45x0.50

NEW

FM05D

5A

200V


Input 200V Maximum

2.28x1.45x0.50

NEW

FM10D

10A

200V


Input 200V Maximum

2.28x2.40x0.97
