Anaren安倫平衡變壓器的特點
發布時間：2020-08-17 16:08:37 瀏覽：1561

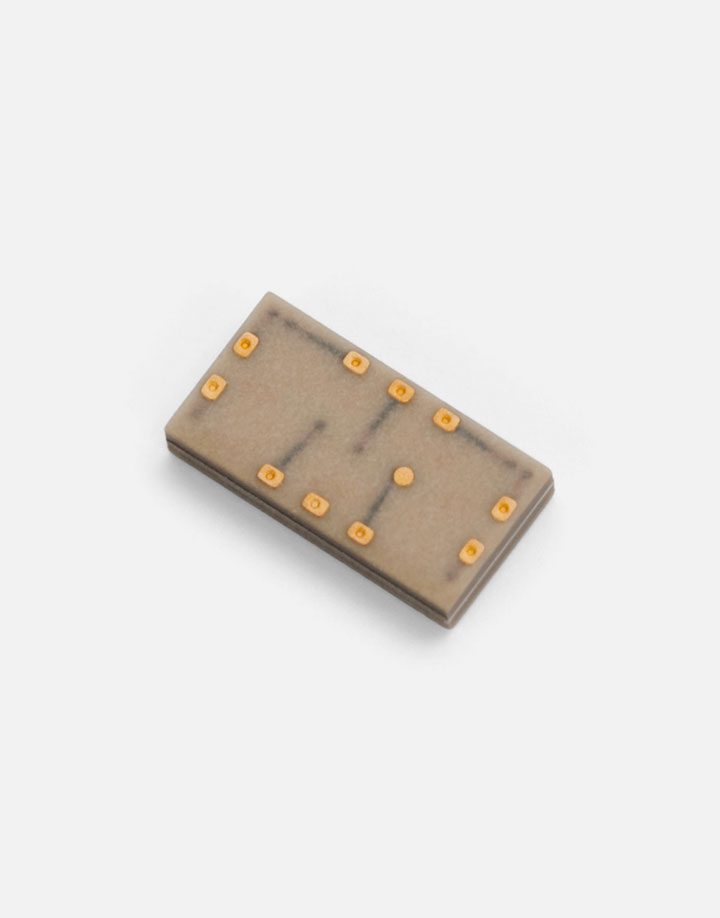

Anaren巴倫變壓器提供阻抗轉換，并將不平衡阻抗轉換為平衡阻抗，反之亦然。Anaren與傳統的陶瓷和集總元件不平衡變壓器相比，Anaren平衡變壓器外形更小，體積更小，性能更高。
Anaren的所有巴倫變壓器都符合RoHS標準，適用于SATV、無線基礎設施和其他消費電子應用。Anaren所有這些組件都經過100%射頻測試，并通過膠帶運輸，因此Anaren可以輕松集成到取放式大規模制造環境中。
深圳市立維創展科技是Anaren品牌的經銷商，主要提供貼片混合耦合器、巴倫變壓器、延遲線、定向耦合器、Doherty合路器、功分器、微蜂窩型耦合器、 RF Crossovers產品，產品原裝庫存，極具價格優勢，歡迎咨詢
詳情了解Anaren請點擊：http://www.yzgnjsb.cn/brand/11.html
或聯系我們的銷售工程師：0755-83642657 QQ: 1369964087
零件號 | 頻率（GHz） | 功率（W） | 不平
衡端口阻抗（Ω） | 平衡
端口阻抗（Ω） | 插入損耗
（dB） | 振幅平
衡（dB） | 相平衡（度） | RL不平衡（dB） |
3A325 | 0.47-0.86 | 275 | 50 | 25 | 0.35 | 0.4 | 180 | 10 |
3A412 | 0.8-1 | 250 | 50 | 12.5 | 0.48 | 0.4 | 180 | 15 |
3A412S | 0.8-1 | 250 | 50 | 12.5 | 0.48 | 0.4 | 180 | 15 |
3W525S | 1.8-2.5 | 150 | 50 | 25 | 0.38 | 0.4 | 180 | 15 |
B0110E50200AHF | 0.085-1.3 | 0.5 | 50 | 200 | 1.5 | 0.8 | 4 | 11 |
B0205F50200AHF | 0.2-0.5 | 2 | 50 | 200 | 1.6 | 0.4 | 3.1 | 13.9 |
B0225J7575AHF | 0.2-2.5 | 0.5 | 75 | 75 | 1.1 | 3.2 | 40 | 14 |
B0310J50100AHF | 0.3-1 | 2 | 50 | 100 | 1 | 2.8 | 36 | 8.1 |
B0322J5050AHF | 0.3-2.2 | 2 | 50 | 50 | 1.6 | 1.3 | 21 | 12.2 |
B0430J50100AHF | 0.4-3 | 1 | 50 | 100 | 4 | 1.4 | 12 | 8.4 |
0 | 0.85-0.915 | 2 | 50 | 匹配的 | 0.6 | -- | -- | 15.3 |
B0922J7575A50HF | 0.95-2.15 | 2 | 75 | 75 | 1.1 | 1.4 | 9 | 12 |
B0922J7575AHF | 0.95-2.15 | 2 | 75 | 75 | 1.2 | 1.4 | 9 | 7 |
B0922N7575AHF | 0.95-2.15 | 0.75 | 75 | 75 | 0.76 | 2.1 | 20.95 | 13.2 |
BD0205F5050AHF | 0.2-0.5 | 2 | 50 | 50 | 1.1 | 0.6 | 3 | 11 |
BD0810J50100AHF | 0.8-1 | 2 | 50 | 100 | 0.95 | 0.4 | 2 | 13 |
BD0810J50150AHF | 0.8-1 | 2 | 50 | 150 | 1.1 | 0.6 | 6 | 13.3 |
BD0810J50200AHF | 0.8-1 | 2 | 50 | 200 | 1 | 1.1 | 8 | 14.5 |
BD0810N50100AHF | 0.8-1 | 0.75 | 50 | 100 | 1.2 | 1.4 | 9 | 18 |
BD0826J50200AHF | 0.8-2.6 | 2 | 50 | 200 | 1.5 | 1.3 | 7 | 8.5 |
BD0922J75100AHF | 0.9-2.2 | 2 | 75 | 100 | 1.64 | 0.8 | 4.67 | 9.1 |
BD1222J50200AHF | 1.2-2.2 | 2 | 50 | 200 | 0.6 | 0.9 | 6 | 14 |
BD1416N50100AHF | 1.4-1.6 | 0.75 | 50 | 100 | 0.9 | 1.2 | 9 | 14 |
BD1631J50100AHF | 1.6-3.1 | 2 | 50 | 100 | 1 | 1 | 5 | 10 |
BD1722J50100AHF | 1.7-2.2 | 2 | 50 | 100 | 1.2 | 1.2 | 6 | 12 |
BD1722J50200AHF | 1.7-2.2 | 2 | 50 | 200 | 0.7 | 0.9 | 8 | 15 |
BD1722N5050AHF | 1.7-2.2 | 0.75 | 50 | 50 | 1.1 | 0.8 | 7 | 13 |
BD2040J50100AHF | 43865 | 2 | 50 | 100 | 1.1 | 1.48 | 16.5 | -- |
BD2130J5050AHF | 2.1-3 | 2 | 50 | 50 | 1.2 | 1 | 5 | 10 |
BD2239N5050AHF | 2.2-3.9 | 1 | 50 | 50 | 1.6 | 1.4 | 8 | 8 |
BD2326L50200AHF | 2.3-2.6 | 2 | 50 | 200 | 1.1 | 0.8 | 9 | 12 |
BD2327N50100AHF | 2.3-2.7 | 1 | 50 | 100 | 0.8 | 1 | 7 | 17 |
BD2425J50100AHF | 2.4-2.5 | 2 | 50 | 100 | 0.75 | 0.5 | 5 | 14 |
BD2425J50200AHF | 2.4-2.5 | 2 | 50 | 200 | 0.8 | 0.5 | 6 | 9.5 |
BD2425N100ATI | 2.4-2.5 | 1 | 50 | 相符 | 0.8 | -- | -- | 17.3 |
BD2425N50100AHF | 2.4-2.5 | 1 | 50 | 100 | 0.7 | 0.6 | 3 | 18 |
BD2425N50200AHF | 2.4-2.5 | 1 | 50 | 200 | 0.7 | 1 | 6 | 21 |
BD2425N5050AHF | 2.4-2.5 | 0.75 | 50 | 50 | 0.9 | 0.9 | 7 | 15 |
BD2425N5075AHF | 2.4-2.5 | 1 | 50 | 75 | 0.9 | 0.9 | 3 | 14 |
BD2425N50ATI | 2.4-2.5 | 1 | 50 | 127 + j34 | 0.6 | -- | -- | 13 |
BD2425NCSR | 2.4-2.5 | 1 | 50 | 相符 | 1 | 0.5 | 4 | 10 |
BD2425NNRF | 2.4-2.5 | 1 | 50 | 相符 | 1.25 | -- | -- | 10.2 |
BD2425P50100AHF | 2.4-2.5 | 1 | 50 | 100 | 0.9 | 1.5 | 9 | 19 |
BD2425P5075AHF | 2.4-2.5 | 1 | 50 | 75 | 1.15 | 1.56 | 7.07 | 11 |
BD3150L50100AHF | 3.1-5 | 2 | 50 | 100 | 1.1 | 0.9 | 9 | 9.5 |
BD3150N50100AHF | 3.1-5 | 1 | 50 | 100 | 0.7 | 1.3 | 7 | 16 |
BD3238N5050AHF | 3.2-3.8 | 1 | 50 | 50 | 1 | 1.5 | 6 | 7 |
BD3438J50200AHF | 3.4-3.8 | 2 | 50 | 200 | 1 | 0.6 | 10 | 11 |
BD4859N50100AHF | 4.8-5.9 | 1 | 50 | 100 | 0.6 | 1.5 | 8 | 15 |
BD4859N50150AHF | 4.8-5.9 | 1 | 50 | 150 | 0.6 | 1.4 | 10 | 12 |
BD4859N5050AHF | 4.8-5.9 | 1 | 50 | 50 | 0.7 | 1.2 | 7 | 13 |
BD60120N50100AHF | 5.9-11.7 | 待定 | 50 | 100 | 0.9 | 1.6 | 13 | 14 |
T0727J5012AHF | 0.7-2.7 | 1 | 50 | 12.5 | 0.9 | -- | -- | 15 |
